X5
Frameless Home&Office AIO
Color：Black/ white
Size：23.8 Inch
- Function
- Parameter
| Main | |
| Model | X5 |
| Screen size | 23.8 Inch |
| Color | Black/white |
| Product type | Barebone AIO |
| Position | Home&office |
| Mainboard | |
| Mainboard | H81(LGA1150),H110(LGA1151) |
| CPU | |
| CPU |
Intel Haswell Celeron/Pentium/Core i3/i5/i7(H81) Intel Skylake Celeron/Pentium/Core i3/i5/i7(H110) |
| Memory | |
| Memory | 2xSO-DIMM,1.5V/1.35V,MAX 16GB |
| Hard Drive | |
| Storage | 1xm-SATA, 2xSATA |
| Display | |
| Screen ratio | 16:9 |

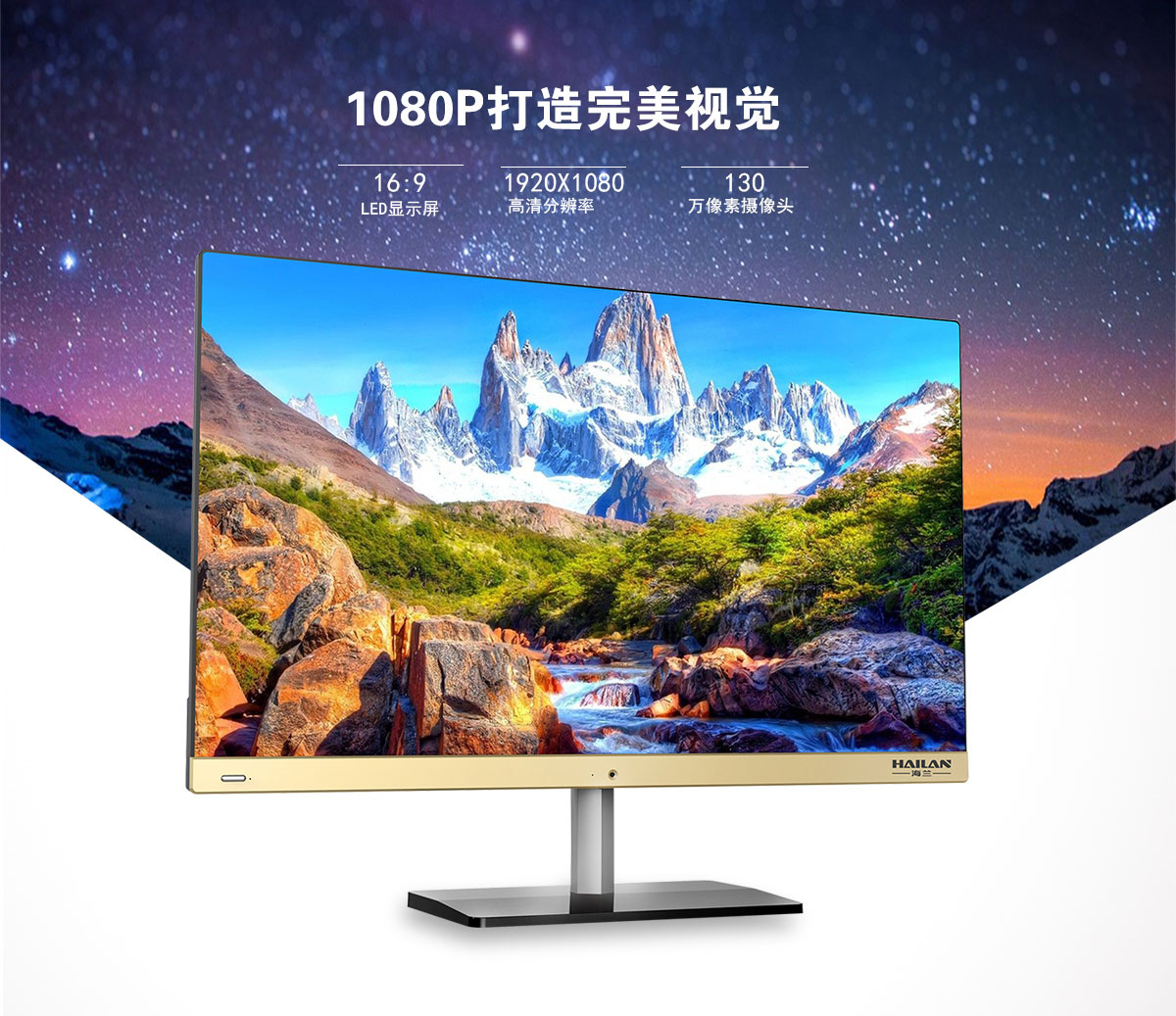

| Best resolution | 1920*1080 |
| Backlight | LED Backlight |
| Response time | 2ms |
| Brightness | 250nits |

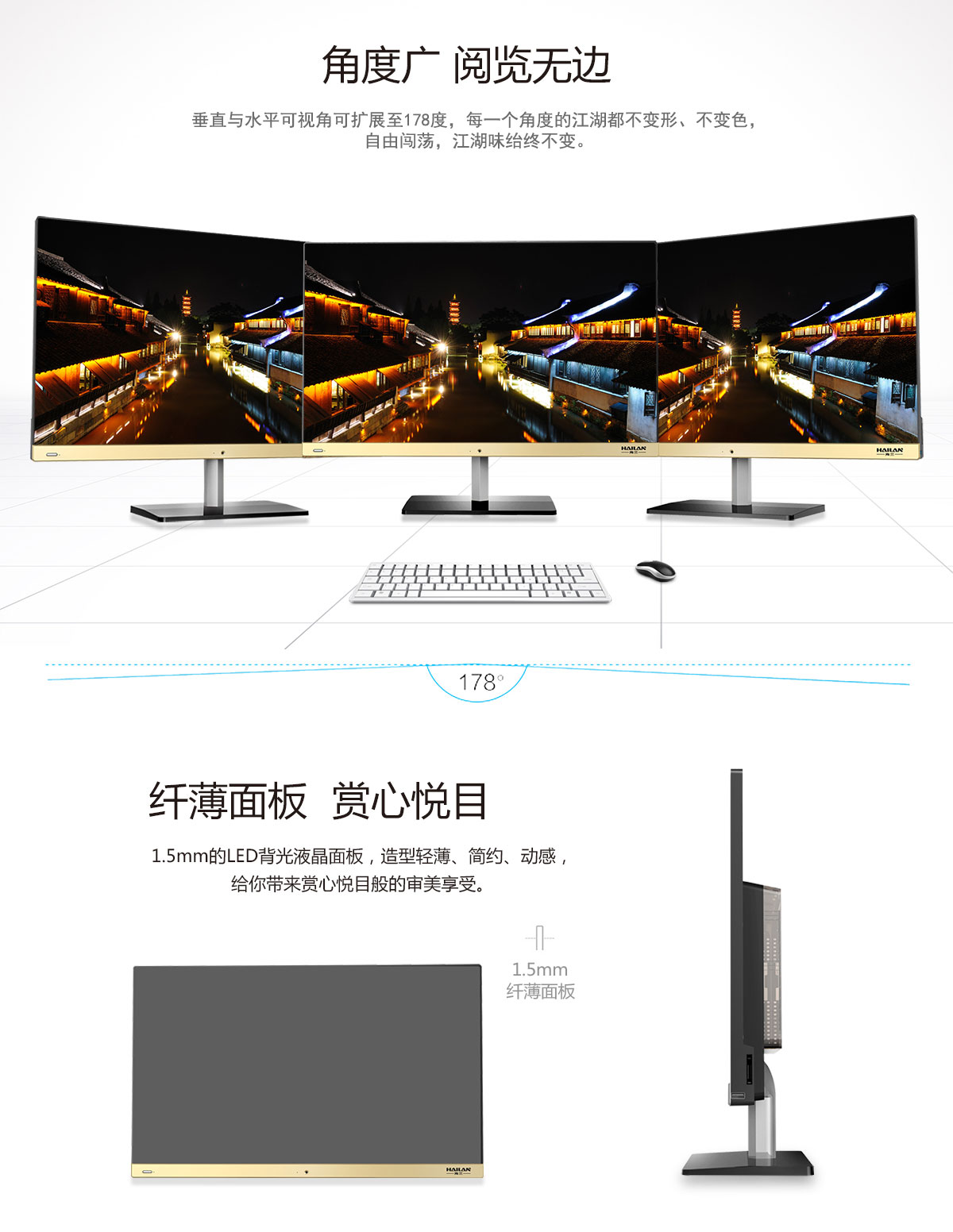

| Viewing angle | 178° (L/R) 178° (U/D) |
| Grapic | |
| Graphic | Intel HD integrated Graphic |
| I/O | |

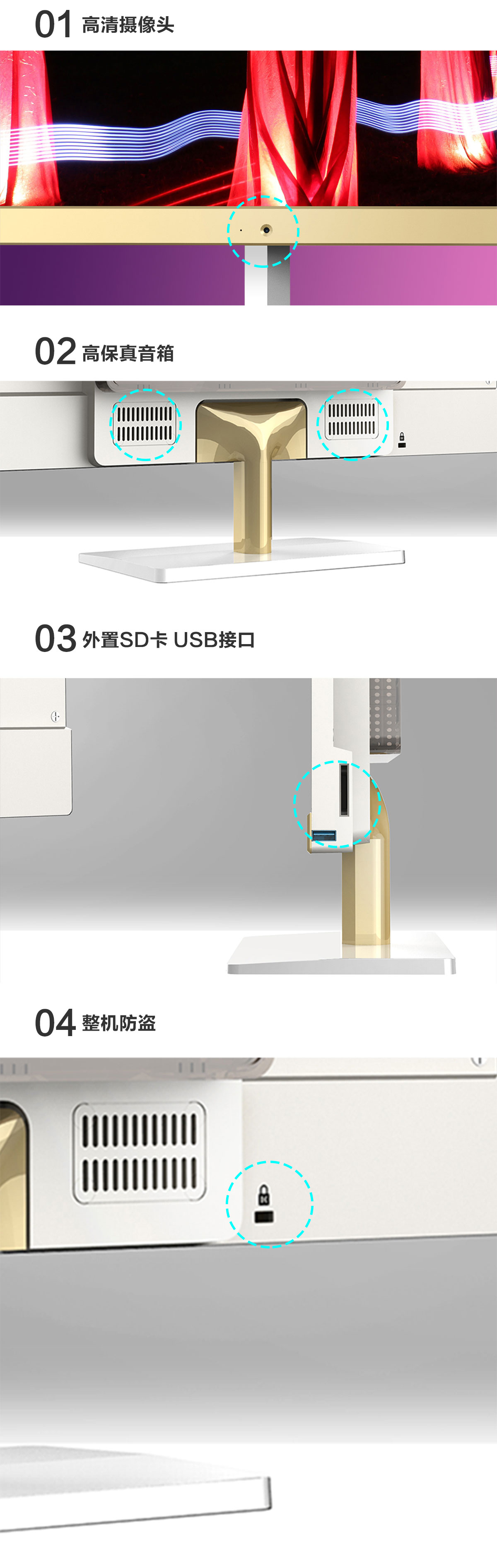

| Front I/O port | SD Card Reader、USB2.0*1 |
| Rear I/O port | HDMI*1、VGA*1、USB3.0*2、USB2.0*2、RJ45 Gigabit LAN*1、AUDIO IN/OUT |
|
|
|
| Touch | N/A |
| Chipset | Intel H81/H110 |
| Optical | N/A |
| WiFi | 802.11 b/g/n(PCI-E) |
| Camera | 2.0MP digital microphone |
| Speaker | Built- in 2 channel stereo |
| Power supply | 110V~220V 90W AC-DC Adapter |
|
|
|
| Power consumption |
|
| Working temperature | -20°~50°C |
| Specification | |
| Unit Dimension | L540*W415*D55mm |
| VESA | 100*100mm |
| Power cables | Included |
| Power specification |
|
|
|
|
| Accessories | |
| Standard accessories | Packing list ：AIO Barebone System, Power cables /screws, external power supply, instruction manual |
|
|
|
|
|
|
