M1019/M1022/M1024
Business All In One PC
Color：Silver white
Size：18.5/21.5/23.8 Inch
- Function
- Parameter
| Main | |
| Model | M1019 M1022 M1024 |
| Screen size | 18.5 Inch 21.5 Inch 23.8 Inch |
| Color | Silver white |
| Product Type | Barebone AIO |
| Product position | Home&Office |
| Mainboard | |
| Mainboard | OEM H81(LGA1150),H110（LGA1151） |
| CPU | |
| CPU |
Intel Haswell Celeron/Pentium/Core i3/i5/i7(H81) Intel Skylake Celeron/Pentium/Core i3/i5/i7(H110) |
| Memory | |
| Memory | 2xSO-DIMM,1.5V,MAX16GB |
| Hard Drive | |
| Storage | 1xm-SATA, 2xSATA |
| Display | |
| Screen ratio | 16:9 |

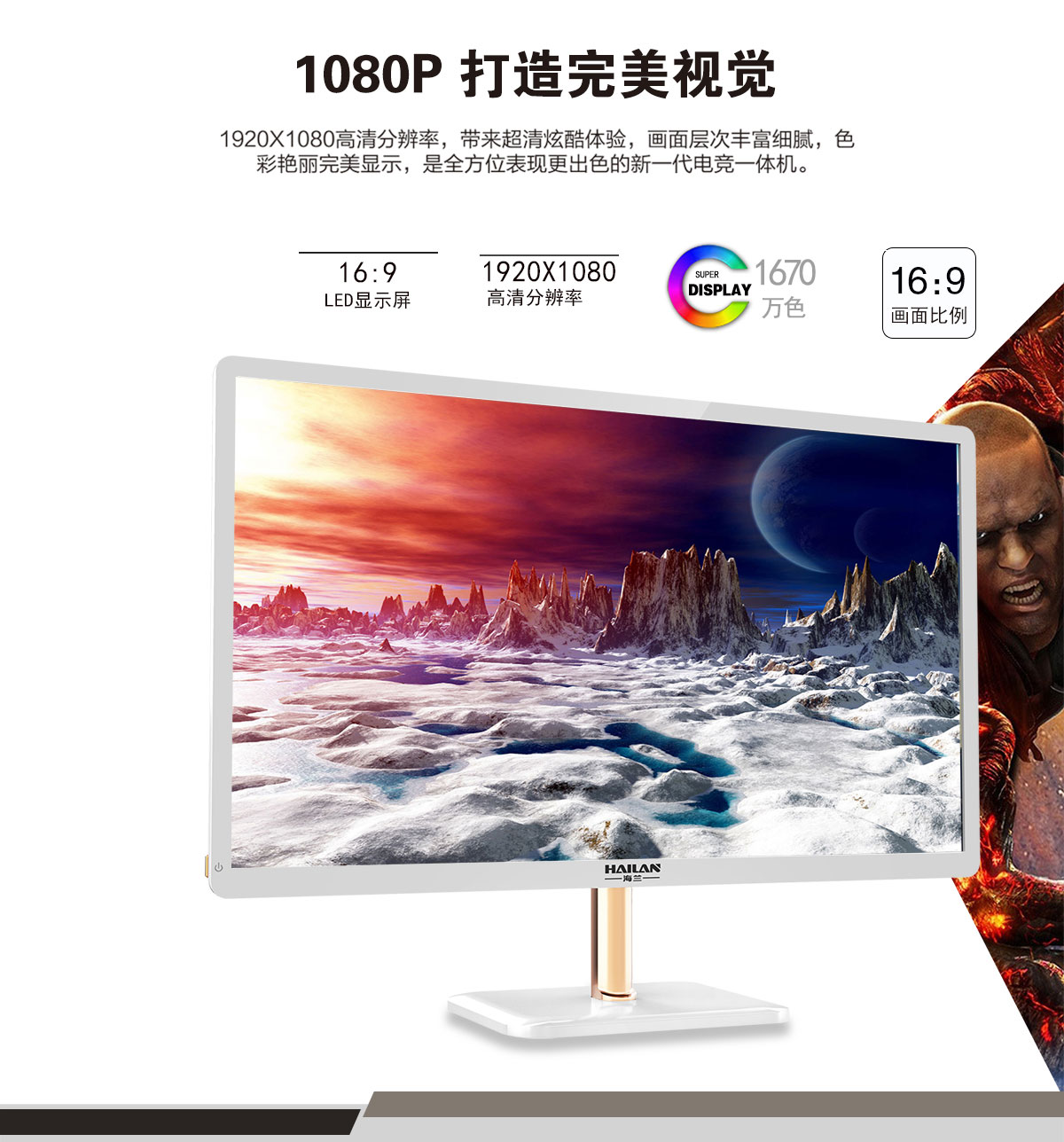

| Best resolution | 1600*900 1920*1080 1920*1080 |
| Backlight | LED Backlight |
| Response time | 2ms |
| Brightness | 250nits |

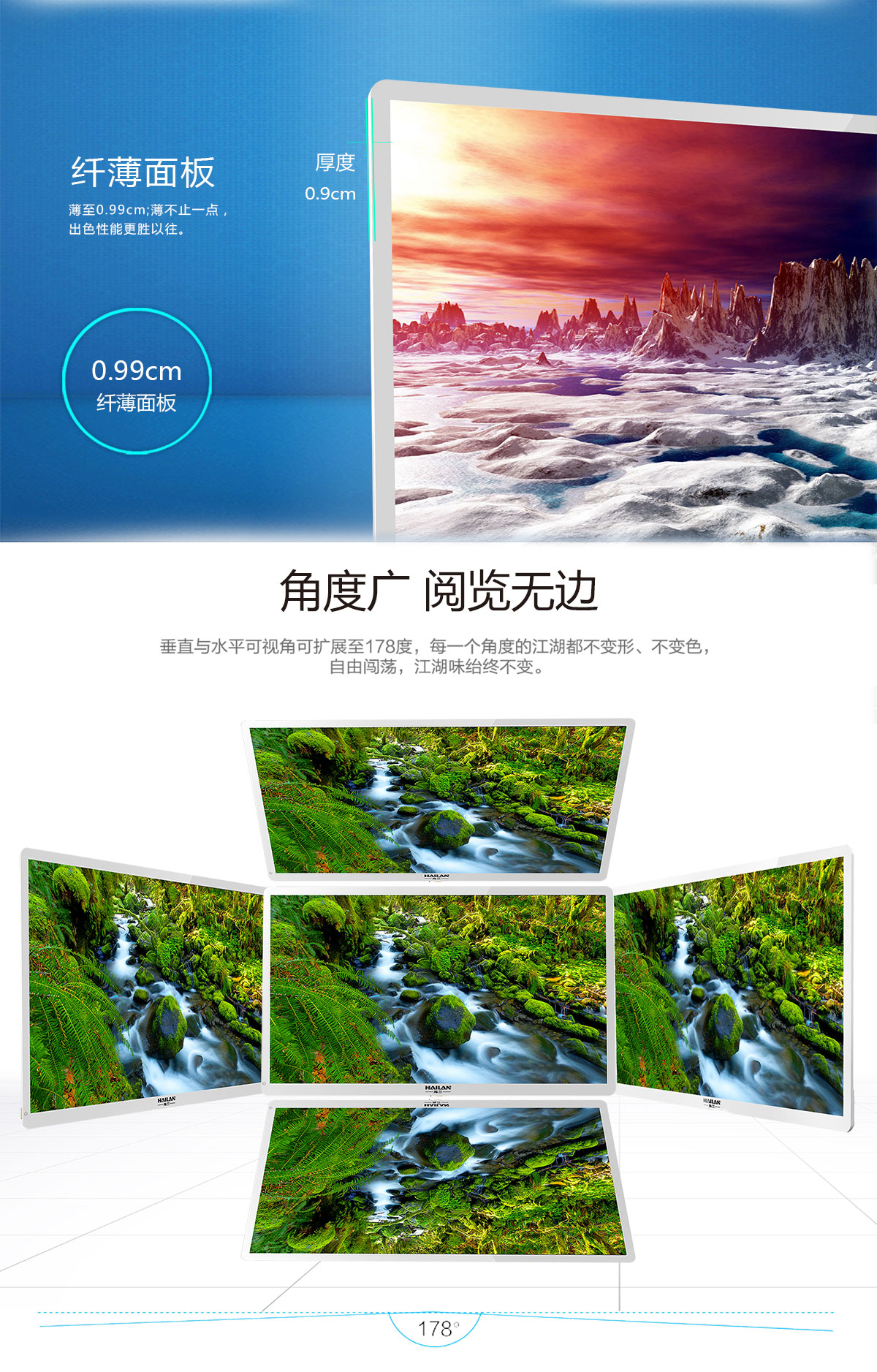

| Viewing angle | 178° (L/R) 178 °(U/D) |
| Graphic | |
| Graphic | Integrated Intel HD |
| I/O port | |
| Front I/O port | USB2.0*1 |
| Rear I/O port | HDMI*1、VGA*1、USB3.0*2、USB2.0*2、RJ45 Gigabit LAN*1、AUDIO IN/OUT |
| Features | |
| Touch | N/A |
| Chipset | Intel H81/H110 |
| Optical Drive | N/A |
| WiFi | 802.11 b/g/n(PCI-E) |
| Camera | N/A |

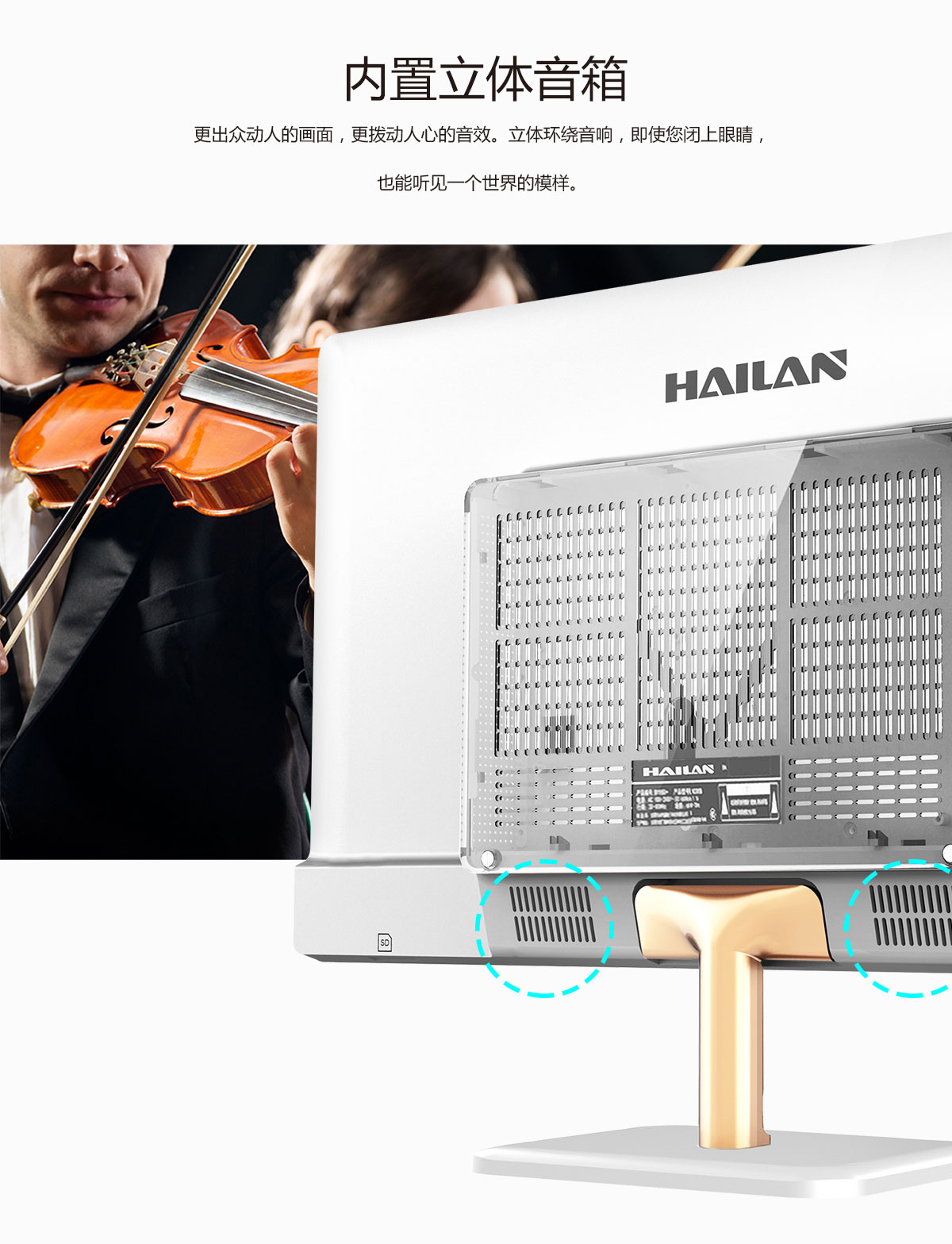

| Speaker | Built - in high quality 2-channel stereo speaker |
| Power supply | 110V~220V 90W AC-DC Adapter |
| Power Consumption | |
| Power consumption |
|
| Working temperature | -20°~50°C |
| Specification | |
| Unit Dimension | L445*W270*D52mm L508*W303*D62mm L557*W330*D62mm |
| VESA | 100*100mm 100*100mm 100*100mm |
| Power cables | Included |
| Power specification |
|
|
|
|
| Accessories | |
| Standard accessories | Packing list：AIO Barebone system, power cables/screws, external power supply, instrution manul |
|
|
|
|
|
|
