X4

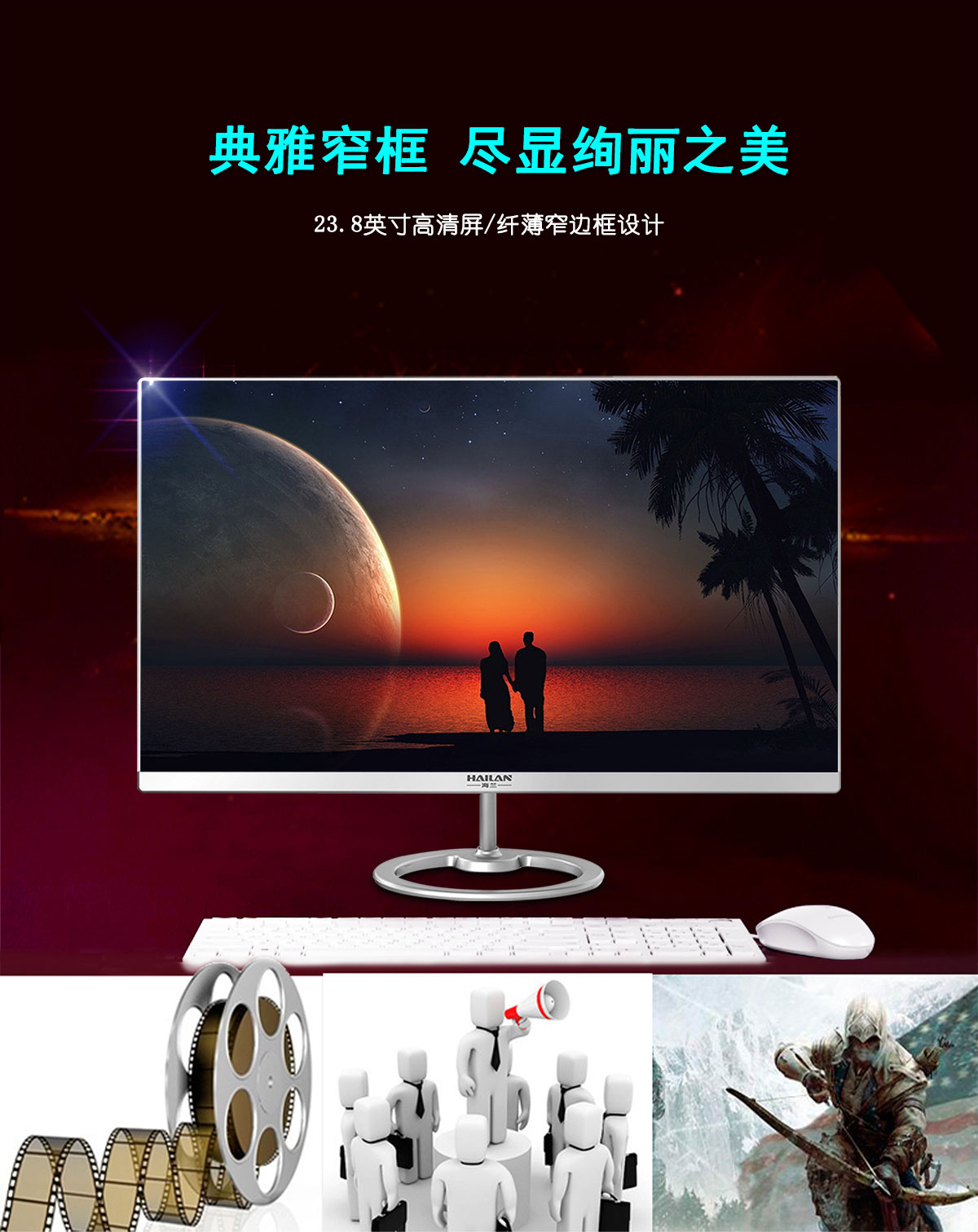

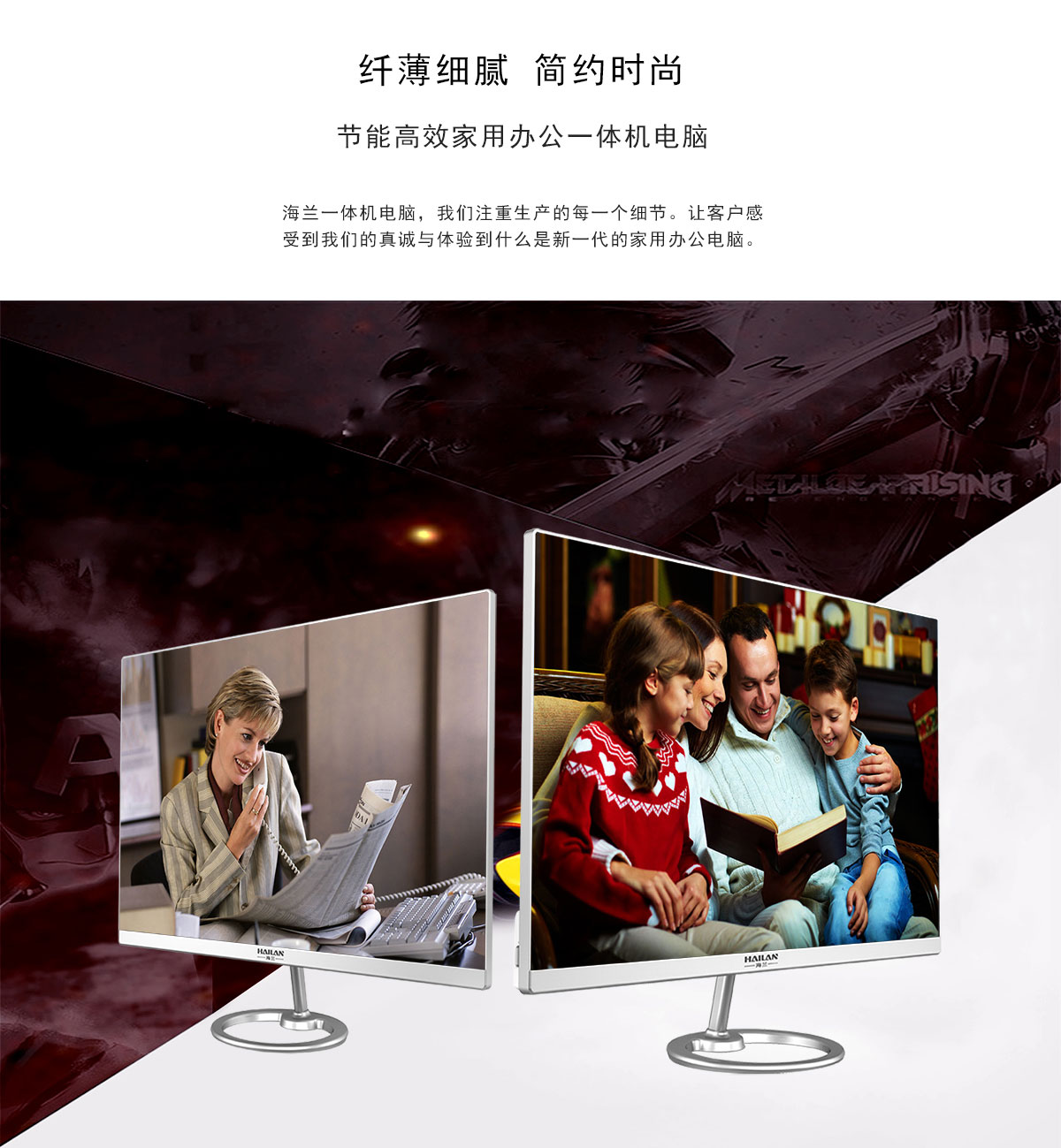

23.8'' Ultra Slim Frameless For Office
Color：Silver white
Size：23.8 Inch
- Function
- Parameter
| Main | |
| Model | X4 |
| Screen size | 23.8 Inch |
| Color | Silver white |
| Product type | AIO Barebone |
| Position | Home&Office |
| Mainboard | |
| Mainboard | J3160CPU ITXmainboard /J3710 quad-core integrated CPU ITX mainboard |
| CPU | |
| CPU |
Intel J3160:、frekvens 1.5GHz kerne hyypighed 2.24GHz Intel J3170、frekvens 1.6GHz、kerne hyypighed 2.64GHz |
| Memory | |
| Memory | 1xSO-DIMM, 1.35V, MAX 8GB |
| Hard Drive | |
| Storage | 2.5 Inch HDD/SSD m-mini SATA |
| Display | |
| Screen ratio | 16:9 |
| Full HD | 1920*1080 |
| Backlight | LED Back light |
| Response time | 2ms |
| Brightness | 250nits |
| Viewing angle | 178° (L/R) 178° (U/D) |
| Graphic | |
| Graphic | Comes with integrated graphic ，do not support Discrete Graphic |
| I/O port | |
| Front I/O port | SD*1、USB*2 |
| Rear I/O port | HDMI*1、VGA*1、USB2.0*3、USB3.0*1、RJ45 Gigabit LAN*1、AUDIO IN/OUT |
| Features | |
| Touch | N/A |
| Chipset | J3160/J3170 |
| Optical Drive | N/A |
| WiFi | 802.11 b/g/n (PCI-E) |
| Camera | N/A |

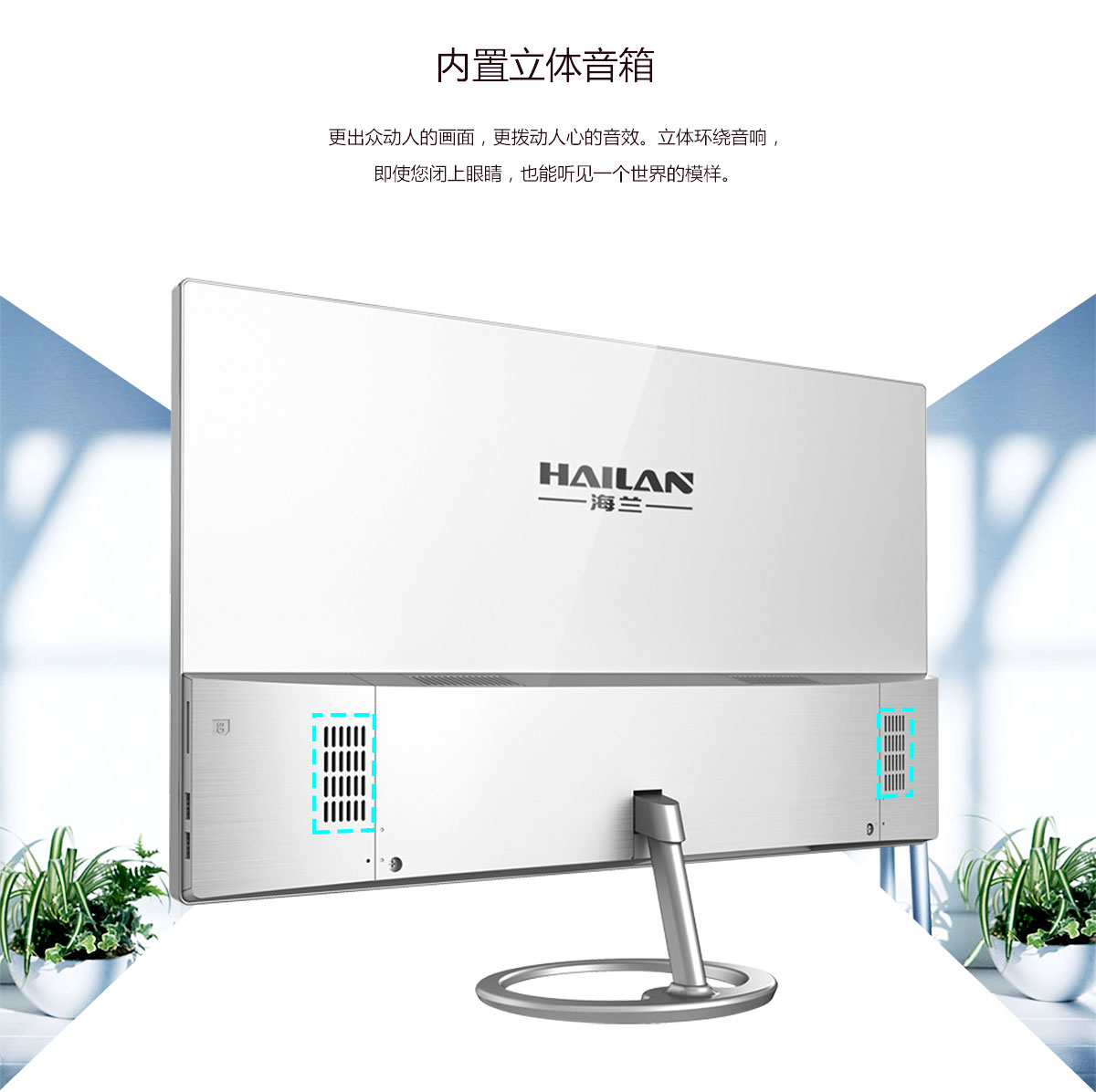

| Speaker | Built- in 2 channel stereo |
| Power supply | 110V-220V 48W AC-DC adapter |
| Power Consumption | |
| Power consumption |
|
| Working temperature | -20°~50°C |
| Specifications | |
| Unit Dimension | L540*W395*D54mm |
| VESA | N/A |
| Power cables | Included |
| Power specification |
12V 4A Adpater |
|
|
|
| Accessories | |
| Standard accessories | Packing list：Barebone AIO System, Power cables/scews, external power supply, instrution manaul |
|
|
|
|
|
|
